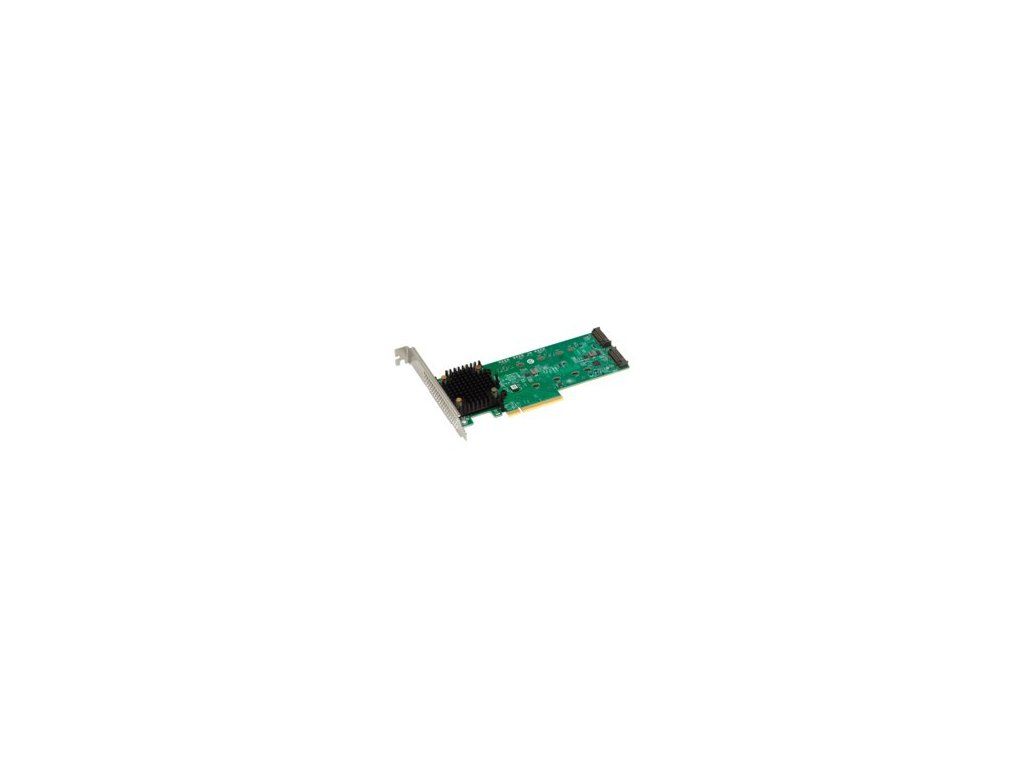

Broadcom MegaRAID 9540-2M2 PCIeGen 4.0 Boot Storage Adapter 05-50148-00

Podrobný popis

Specification Value
Lifecycle Active
Distributor Inventory No
Data Transfer Rates 6Gb/s SATA and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported M.2 SATA or NVMe SSDs
Generation PCIe Gen 4
Host Bus Type x8 lane PCI Express 4.0
I/O Processor / SAS Controller SAS3808
Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF > 5,000,000 hours at 40° C
Operating Temperature°C 0°C to 55°C
OS Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions 167.51 (+/-0.13) mm x 68.77 (+/-0.13) mm
RAID Levels 0, 1
Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
