Ubiquiti UniFi switch Gen2 USW-PRO-MAX-48-POE Layer3 32x 1Gbps 16x 2,5Gbps + 4x SFP+ POE++ (720W) USW-PRO-MAX-48-POE

Podrobný popis

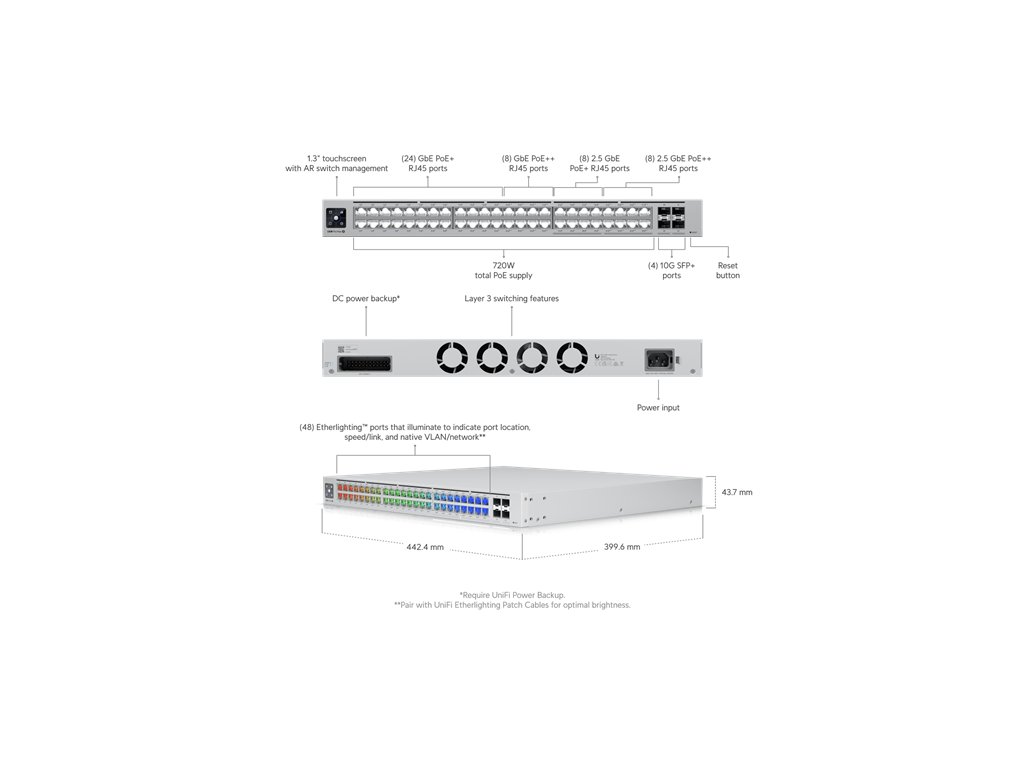

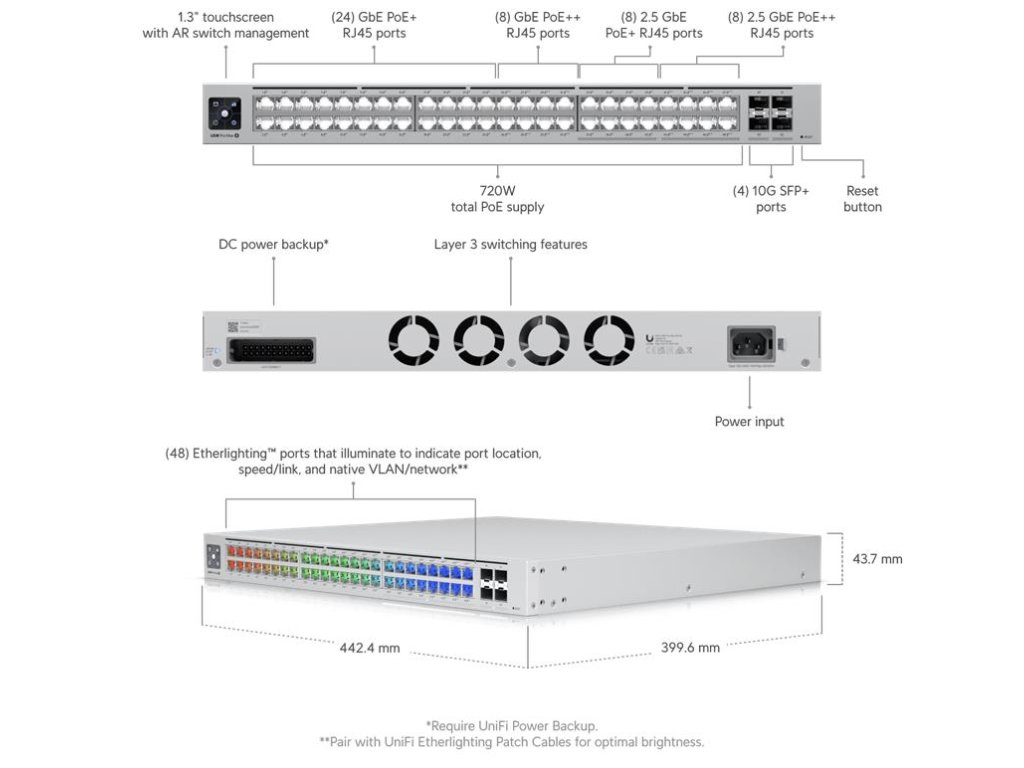

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output. Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++ (32) GbE ports including (24) PoE+ and (8) PoE++ (4) 10G SFP+ ports DC power backup ready 720W total PoE availability Managed with UniFi Network 8.0.24 and later *Pair with UniFi Etherlighting Patch Cables for optimal brightness. -------------- Technical Specifications Mechanical Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7") Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) Total non-blocking throughput 112 Gbps Switching capacity 224 Gbps Power method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input Power supply AC/DC, internal, 820W Supported voltage range 100—240V AC Max. power consumption 100W (Excluding PoE output) Total available PoE 720W Max. PoE wattage per port by PSE PoE: 15.4W PoE+: 30W PoE++: 60W Voltage range PoE mode PoE: 44—57V PoE+: 50—57V LCM display (1) 1.3" touchscreen Button Factory reset Operating temperature -5 to 40° C (23 to 104° F) Operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Etherlighting™ Ethernet Locating Speed/link Native VLAN/network SFP+ Locating Speed/link Native VLAN/network LEDs System Status RPS Status Application Requirements UniFi Network Version 8.0.24 and later
