Omada 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter PORT: 1× 100Mbps SC Port, 1× 10/100 FC111B-20

Podrobný popis

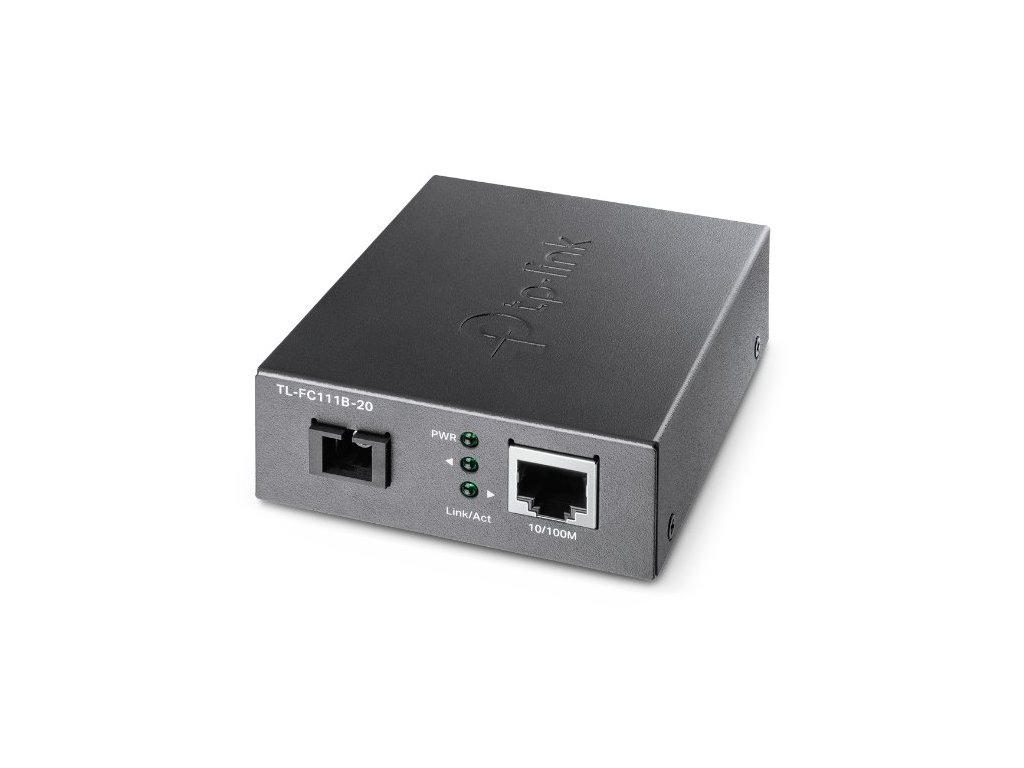

TL-FC111B-20

10/100 Mbps WDM Media Converter

Complies with 802.3u 10/100Base-TX, 100Base-FX standards

Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

Adopts WDM technology, transmitting and receiving data on one single fiber

Extends fiber distance up to 20km



NETWORK

Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u

ENVIRONMENT

Operating Temperature 0°C to 50°C (32°F to 122°F)

Storage Temperature -40°C to 70°C (-40°F to 158°F)

Operating Humidity 10% to 90% RH non-condensing

Storage Humidity 5% to 90% RH non-condensing

HARDWARE FEATURES

Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (?100 m)

Power Supply External Power Adapter: 5 V/0.6 A

LED PWR, Link/Act

Dimensions ( W x D x H ) 94.5*73*27 mm

Wave Length 1310 nm TX, 1550 nm RX

ANTENNA

Connector Type 1 SC fiber optic, 1 RJ45 jack

MEDIA CONVERTER & MODULE

Fiber Type 9/125 µm single-mode fber (?20 km)
