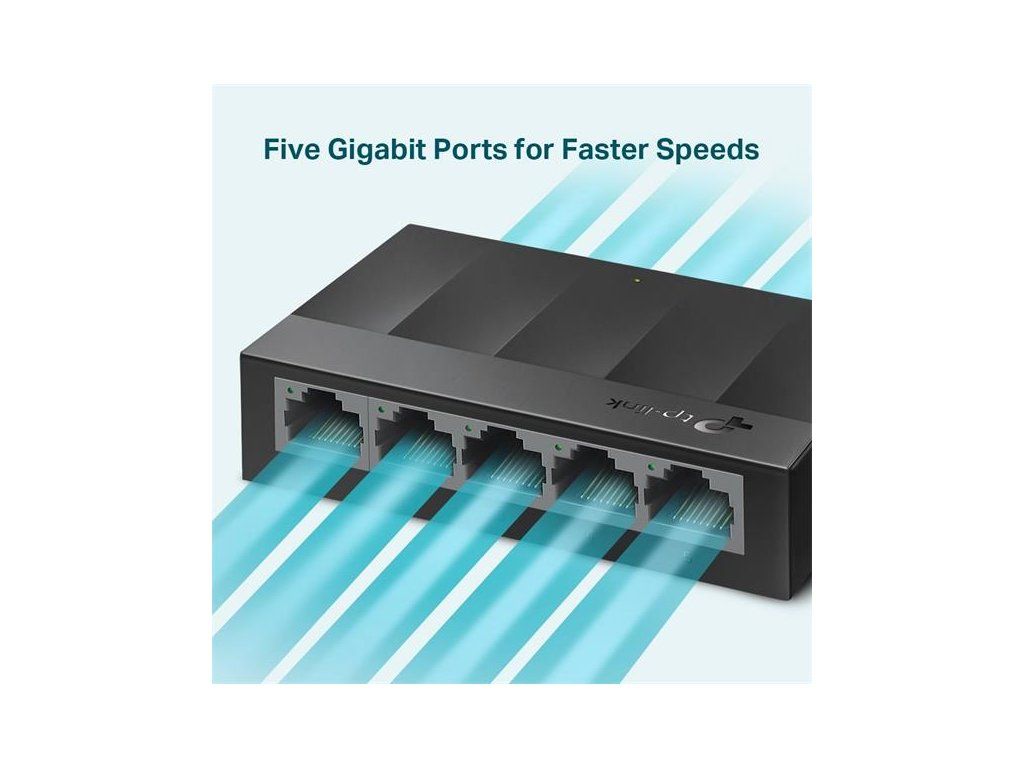

LiteWave 5-Port Gigabit Desktop Switch PORT: 5× Gigabit RJ45 Ports SPEC: Desktop Plastic Case FEATURE: Plug and Play LS1005G

Podrobný popis

LS1005G

5-Portový stolný switch 10/100/1000Mb/s

5 portov RJ45 s automatickou adaptáciou 10/100/1000Mb/s podporujúcich Auto-MDI/MDIX

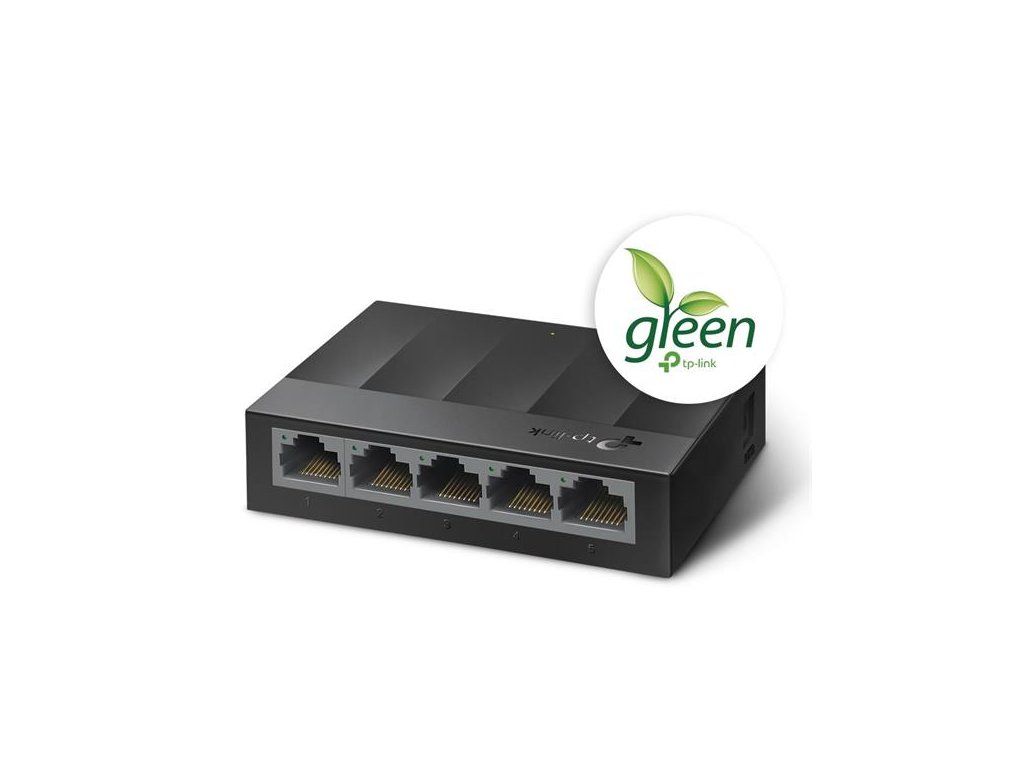

Technológia Green Ethernet šetrí spotrebu energie

Riadenie toku IEEE 802.3x zaisťuje spoľahlivý prenos dát

Plastové púzdro, desktopová konštrukcia alebo konštrukcia s upevnením na stenu

Plug and play, bez nutnosti konfigurácie

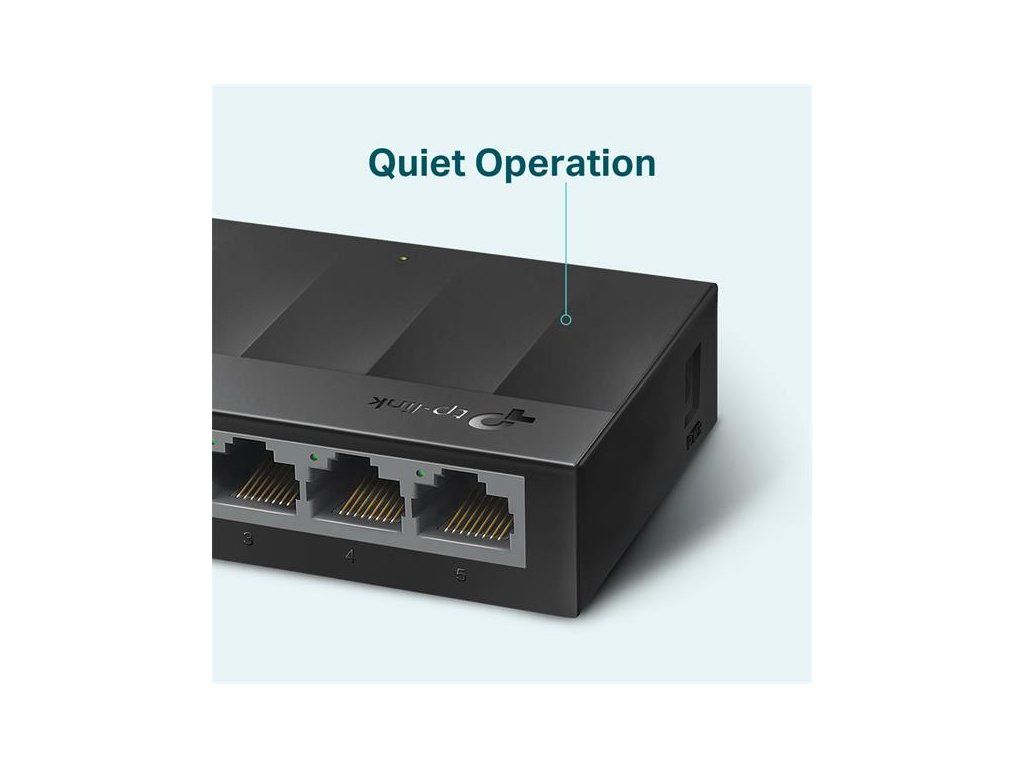

Dizajn bez ventilátora zaisťuje tichú prevádzku



HARDWARE FEATURES

Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 5VDC/0.6A)

Dimensions ( W x D x H ) 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)

Max Power Consumption 3.7W

Max Heat Dissipation 12.617 BTU/h

PERFORMANCE

Switching Capacity 10 Gbps

Packet Forwarding Rate 7.4 Mpps

MAC Address Table 2K

Packet Buffer Memory 1.5 Mb

Jumbo Frame 16 KB

SOFTWARE FEATURES

Advanced Features Green Technology

802.3X Flow Control

Back Pressure

Transfer Method Store and Forward

OTHERS

Certification CE, FCC, RoHS

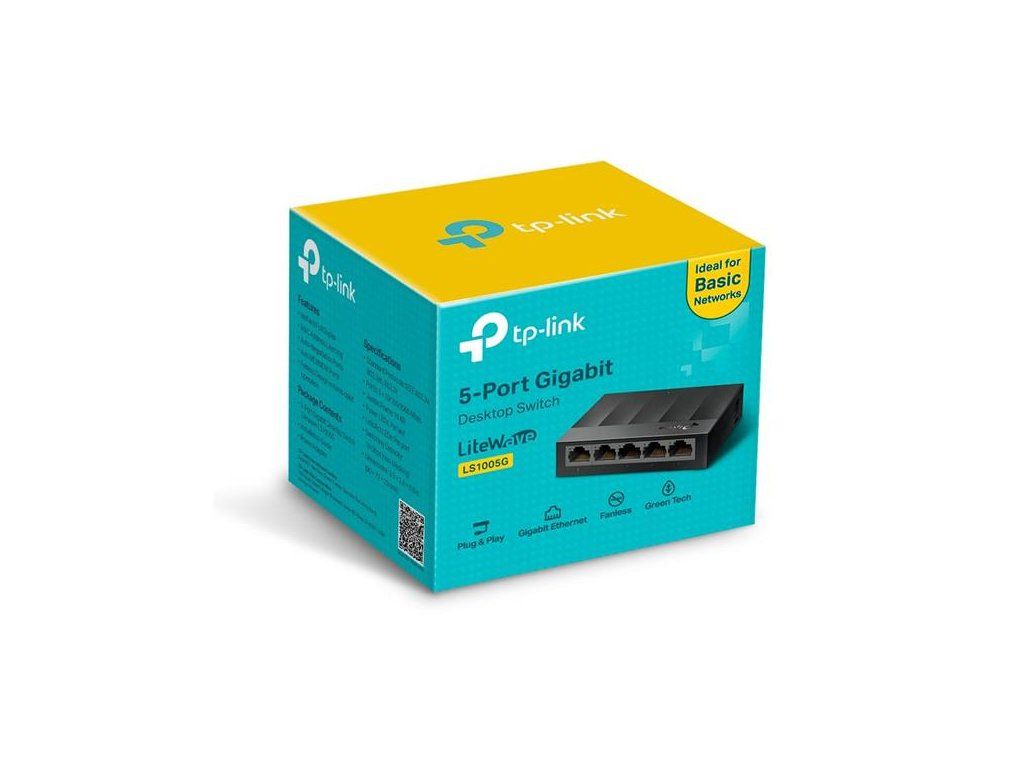

Package Contents 5-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing
