AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router SPEED: 574 Mbps at 2.4 GHz + 1201 Mbps at 5 GHz SPEC: 4× External Ante Archer VX1800V

Podrobný popis

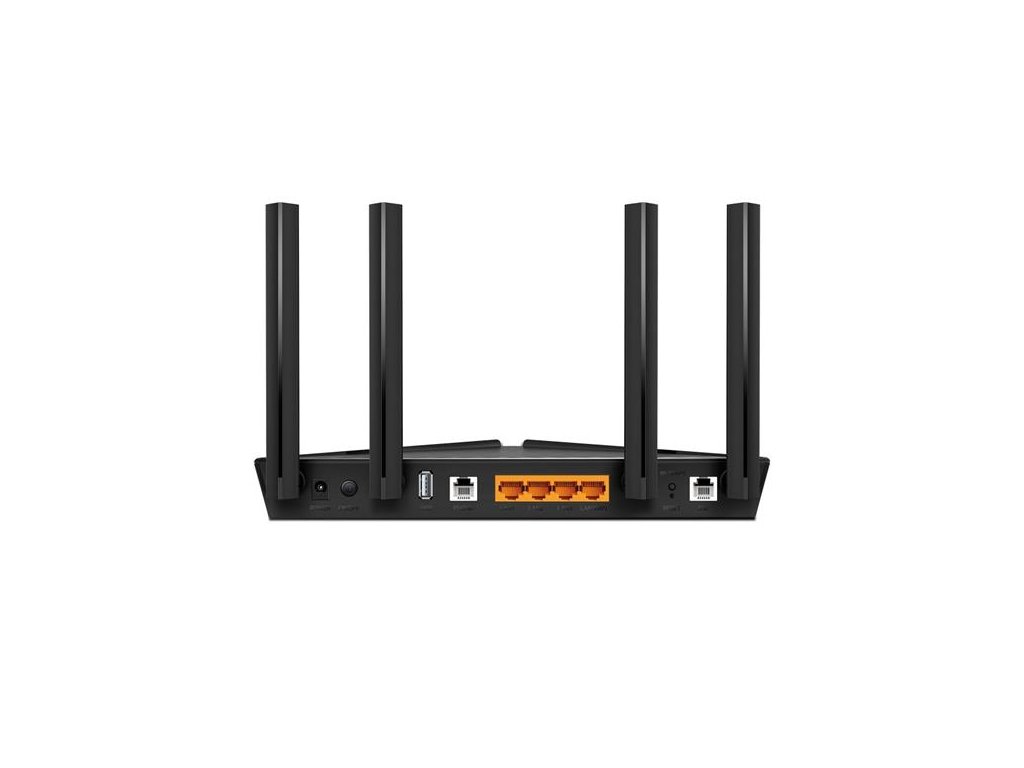

Archer VX1800v

Dvojpásmový modemový router VDSL AX1800 s Wi-Fi 6

Super VDSL – Najnovšia technológia Super VDSL (VDSL2 Profile 35b) poskytuje internetové pripojenie s rýchlosťou až 350 Mbit/s, zatiaľ čo technológie G.vector a RNC zaisťujú lepšiu stabilitu pri prenose dát.

Gigabitová sieť budúcej generácie s rýchlosťou Wi-Fi 6 - 1 201 Mb/s v pásme 5 GHz a 574 Mb/s v pásme 2,4 GHz pre plynulejšie streamovanie obsahu a rýchlejšie sťahovanie.

2×2 MU-MIMO – Umožňuje súčasne prenášať dáta do niekoľkých zariadení s až štyrikrát vyšším výkonom.

Podpora VoIP - Podporuje viac účtov VoIP a rôzne funkcie volania, ktoré prekonávajú tradičné pevné linky.

Aplikácia TP-Link Tether – Jednoduchý prístup a správa vašej siete vrátane vzdialeného ovládania a automatických aktualizácií pomocou akéhokoľvek mobilného zariadenia iOS alebo Android.

Univerzálne možnosti pripojenia - Plná kompatibilita so štandardmi VDSL2, podporuje pripojenie optického a káblového internetu cez ethernetový port a taktiež internetové služby 3G/4G cez port USB.



HARDWARE FEATURES

Interface 1× Gigabit WAN/LAN,

3× Gigabit LAN,

1× USB 2.0,

2× RJ11 (1× DSL + 1× FXS)

External Power Supply 12V / 1.5A

IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab

VDSL2 Standards ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)

ADSL Standards N/A

ADSL2 Standards N/A

ADSL2+ Standards N/A

Dimensions ( W x D x H ) 260.2 × 135.0 × 41.6 mm

Antenna 4× External Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Wireless Speeds 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz

Frequency 2.4 GHz and 5 GHz

Transmit Power CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

Wireless Functions Enable/Disable Wireless Radio, WMM

Wireless Security WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise encryptions

Wireless Schedule Supports 2.4 GHz and 5 GHz Wireless Schedule

VOIP FEATURES

VoIP Standards SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB, G.726

Integrated Answering Machine Stores long voice messages internally on the modem router or store voice messages externally on USB storage devices

Advanced Telephone Functions Call Forwarding, Call Transfer, Call Back on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number

SOFTWARE FEATURES

Advanced Features IPTV, Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3

Security NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding

Operating Modes VDSL Modem Router, 3/4G Router, Wireless Router

Management Access Control, Local Management, Remote Management

DHCP Server, DHCP Client List, Address Reservation

Port Forwarding Port Forwarding, Port Triggering, UPnP, DMZ

Dynamic DNS DynDns, NO-IP, TP-Link

VPN OpenVPN, PPTP VPN, IPSec VPN

Protocols Support IPv4 and IPv6

ATM/PPP Protocols ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

USB Sharing Support Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / SFTP Server / Web Storage

Guest Network 2.4 GHz guest network, 5 GHz guest network

IPSec VPN Support up to 10 IPSec VPN tunnels

OTHERS

Certification CE, RoHS

Package Contents Wi-Fi 6 VDSL Modem Router Archer VX1800v

External Splitter

RJ11 DSL Cable

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or

other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~60? (-40? ~140?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
