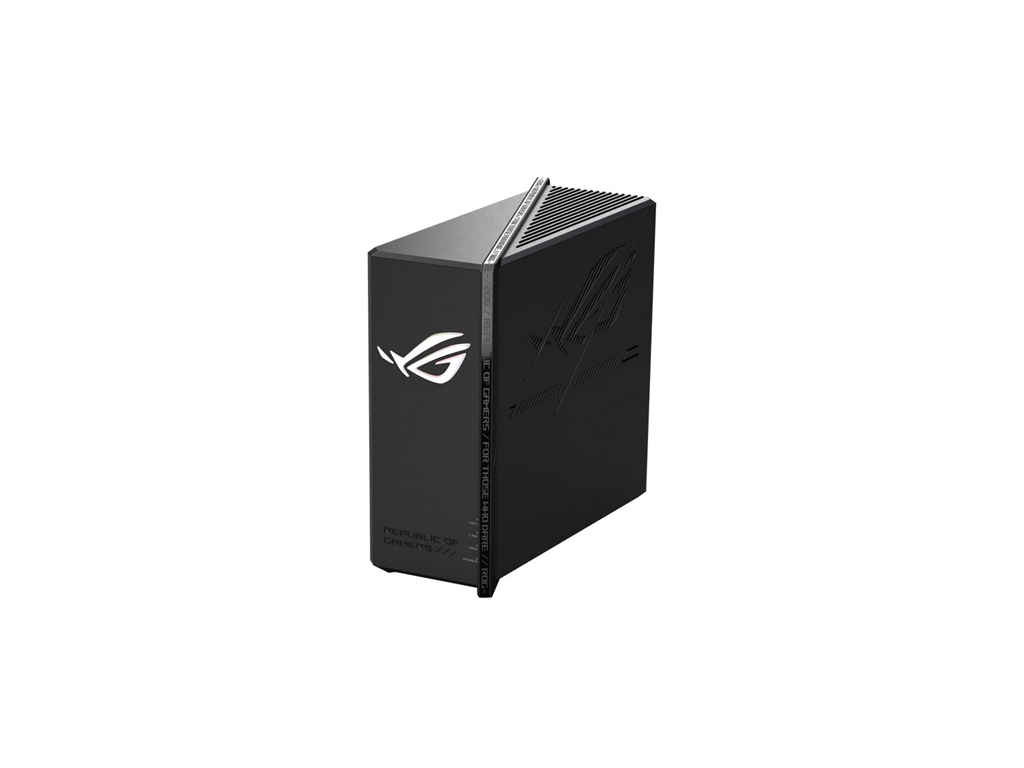

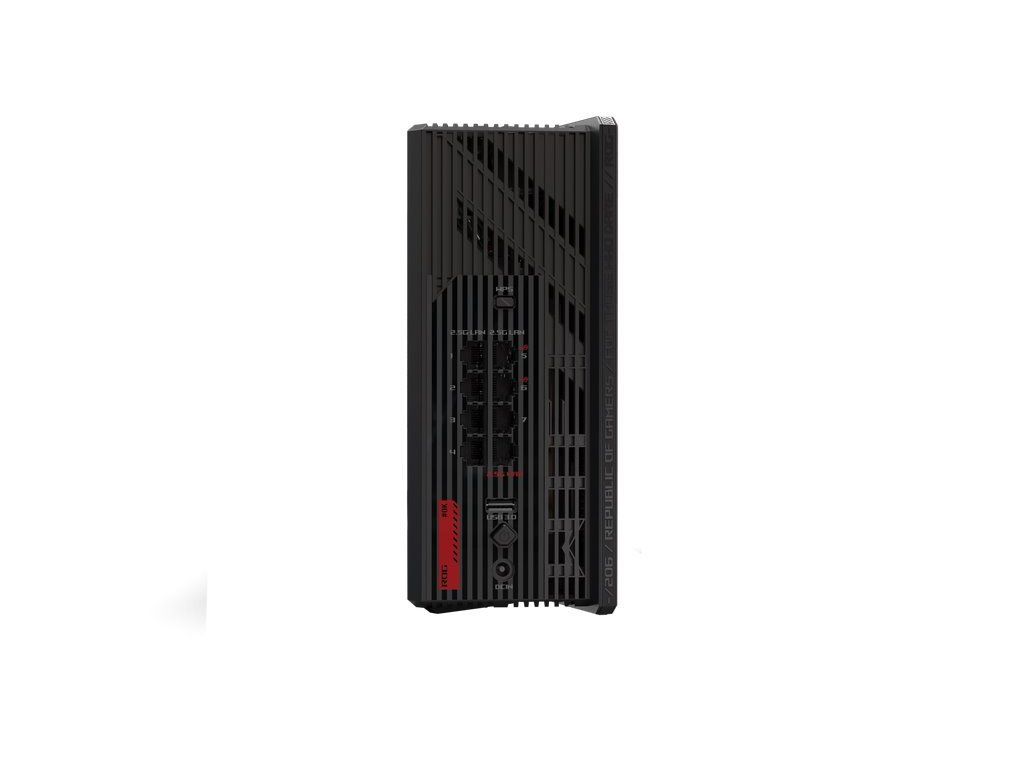

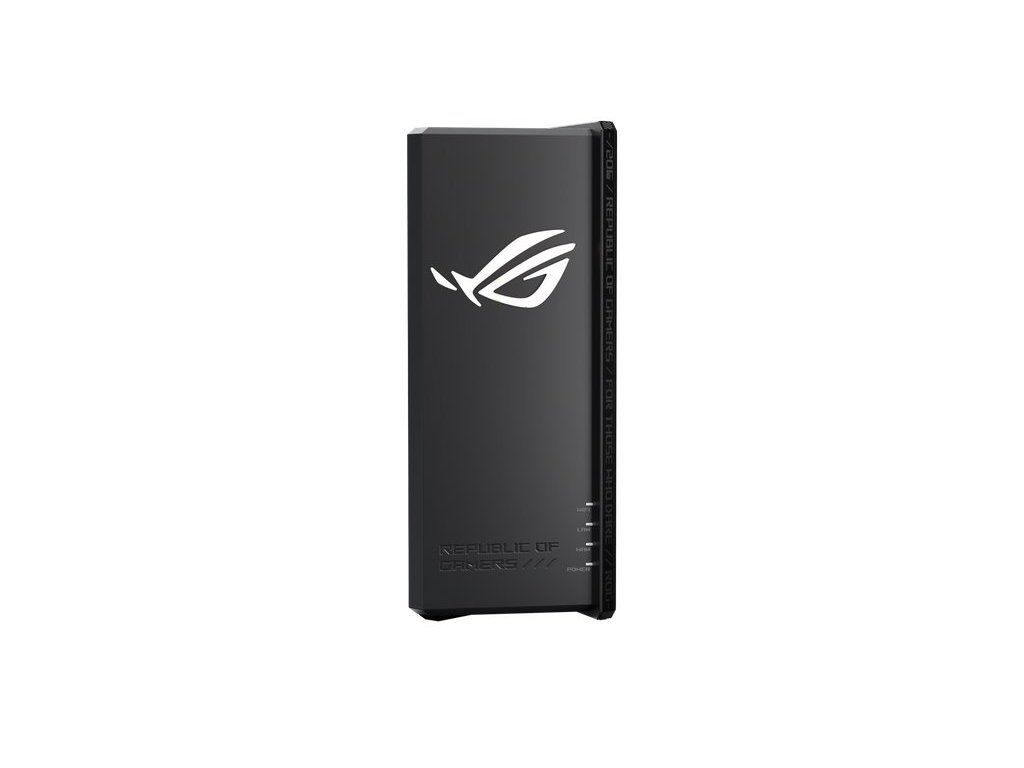

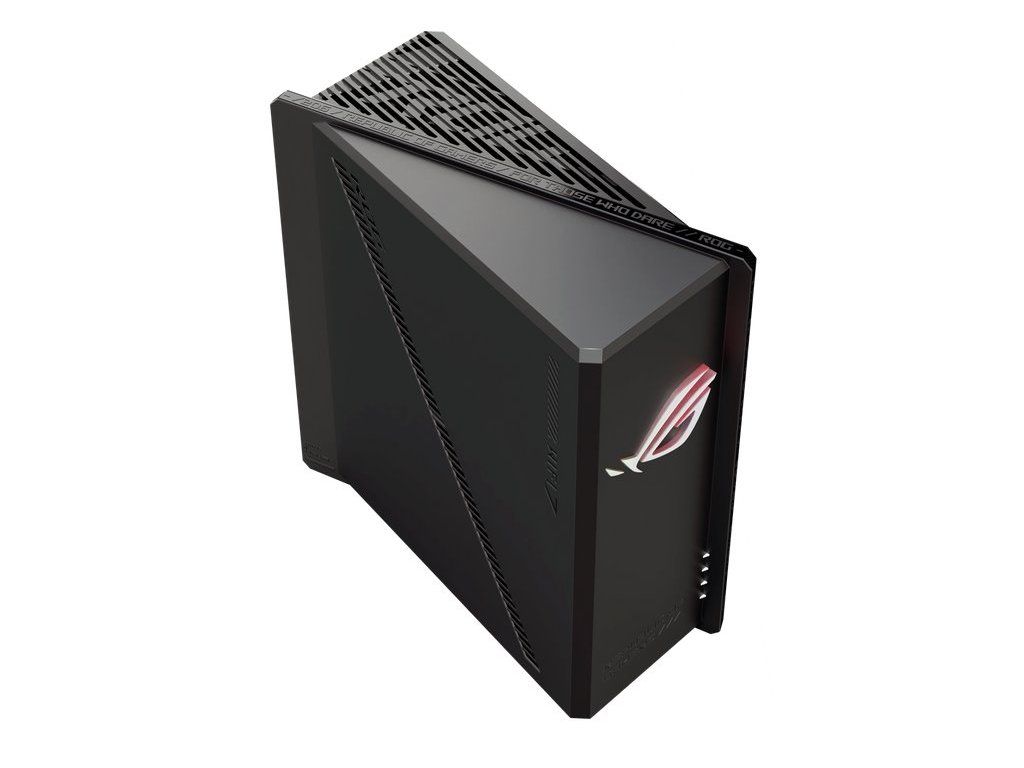

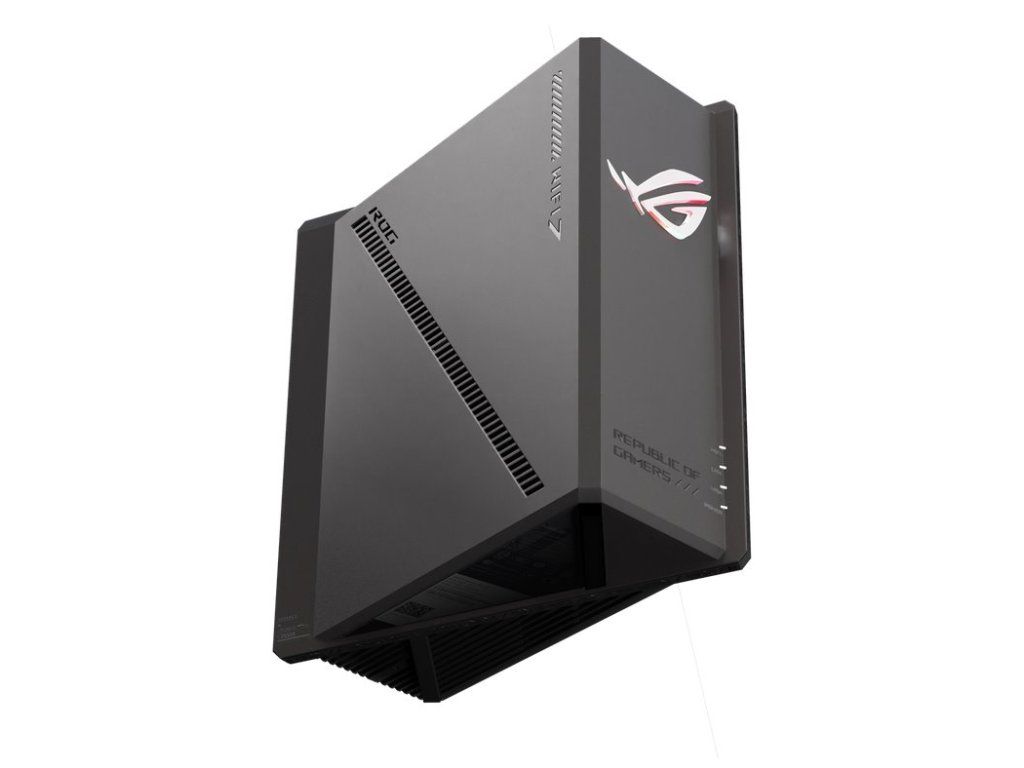

ASUS ROG STRIX GS-BE18000 Ultimate Gaming router, tri-band WiFi 7, 4x4 MIMO, combined 20G wired capacity 90IG09Y0-MO9C00

Podrobný popis

Model ROG STRIX GS-BE18000 Model Name GS-BE18000 Network Standard WiFi 6 (802.11ax) WiFi 7 (802.11be) IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IPv4 IPv6 Product Segment BE18000 ultimate BE performance: 688+5764+11529 Mbps WiFi Data Rate 2.4GHz BE: 2x2 (Tx/Rx) 4096 QAM 20/40MHz, up to 688Mbps 5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp 6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp Antenna internal antenna x 8 Transmit / Receive 2.4GHz 2x2 5GHz 4x4 6GHz 4x4 Processor 2.0GHz quad-core processor Memory 256 MB Flash and DDR4 2 GB RAM Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth Operating Frequency 2.4 GHz 5 GHz 6 GHz Operating Mode Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge I/O Ports 1 x 2.5Gbps for WAN 7 x 2.5Gbps for LAN 1 x USB 3.2 Gen1 1 x 2.5Gbps for WAN 7 x 2.5Gbps for LAN 1 x USB 3.2 Gen1 Buttons WPS Button, Reset Button, Power Button LED Indicator WAN(Internet) x1 LAN x1 WiFi x1 Power x1 WAN(Internet) x1 LAN x1 WiFi x1 Power x1 Power Supply AC Input: 110V~240V(50~60Hz) DC Output: 12 V with max. 5 A current / 12 V with max. 3 A current AC Input: 110V~240V(50~60Hz) DC Output: 12 V with max. 5 A current / 12 V with max. 3 A current Package Content GS-BE18000 tri-band gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card GS-BE18000 tri-band gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card Product Weight (g) 927.5 g Product Dimensions 225 x 90 x 225 mm AiMesh AiMesh • Primary AiMesh Router • AiMesh Node Game Game Boost / Acceleration Mobile Game Mode Gear Accelerator ROG_First OpenNAT (Game Profile) Gaming Port Gaming Network Parental Control "Allow you to block access to unwanted websites and apps." Web & Apps Filters Time Scheduling Reward Parental Control Customized Internet Schedule • Maximum Parental Control profile : 64 • Maximum Parental Control content filter rule : 64 • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Filter Rule : 64 Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network." Support Guest Network • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal Security AiProtection VPN WiFi Encryption : WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 WiFi Encryption : WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE AiProtection AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking VPN Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Traffic Control Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History WAN Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP Internet Connection Type : • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding • Maximum Port Forwarding Rule : 64 Port Triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay LAN DHCP Server IPTV Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 128 Wake on LAN (WOL) Wireless MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Wi-Fi Radar Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming USB application 4G / 5G Auto Mobile Tethering File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk Download Master Media Server Time Machine Samba Server FTP Server Shared Folder Privileges User Interface WEB: ASUSWRT APP: ASUS Router APP Operating system : ASUSWRT Administration Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update
