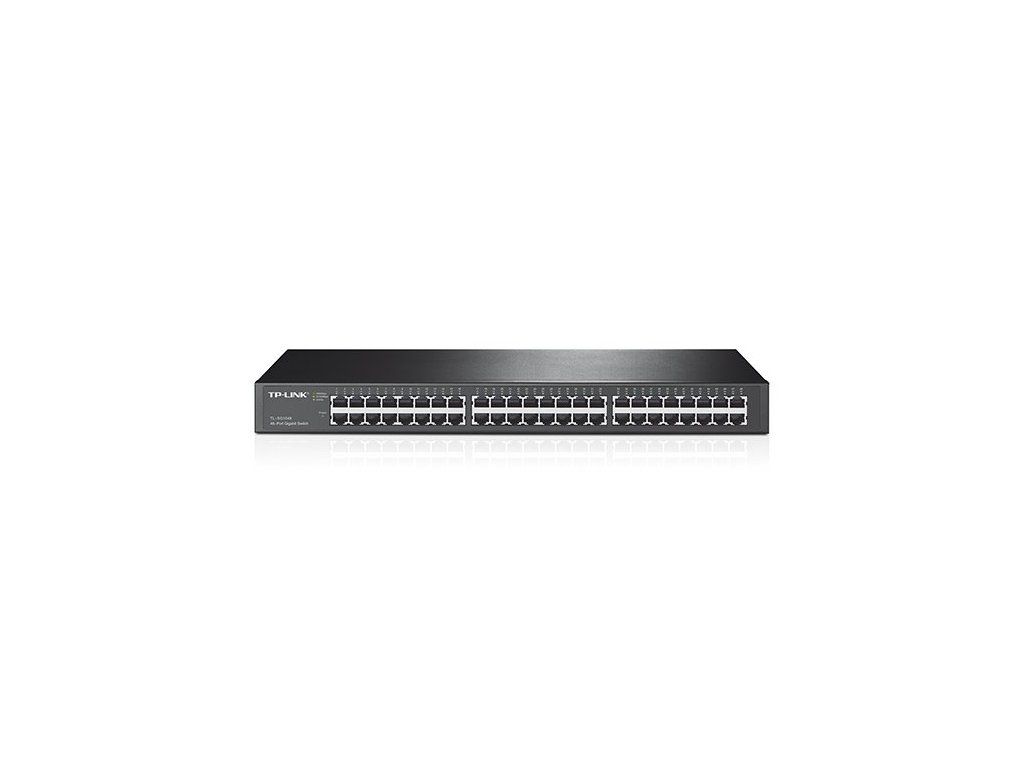

48-Port Gigabit Switch PORT: 48× Gigabit RJ45 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Plug and Play TL-SG1048

Podrobný popis

48portový gigabitový switch
TL-SG1048
48 portů 10/100/1 000 Mbit/s RJ45
Podporuje automatické učení adres MAC a Auto MDI/MDIX
Ocelové pouzdro pro montáž do standardních racků 19''

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity 2
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 29.8W (220V/50Hz)
Dimensions ( W x D x H ) 17.32*8.7*1.73 in.(440*220*44 mm)
Mounting Rack Mountable
Max Power Consumption 32.29W(220V/50Hz)
Max Heat Dissipation 110.17BTU/h
PERFORMANCE
Switching Capacity 96Gbps
Packet Forwarding Rate 71.4Mpps
MAC Address Table 8K
Buffer Memory 16Mb
Jumbo Frame 10KB
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
